Disclaimer: Specifications and technical details are for indicative purposes only, subject to change.
CDS can source or manufacture custom cables even if not shown online.

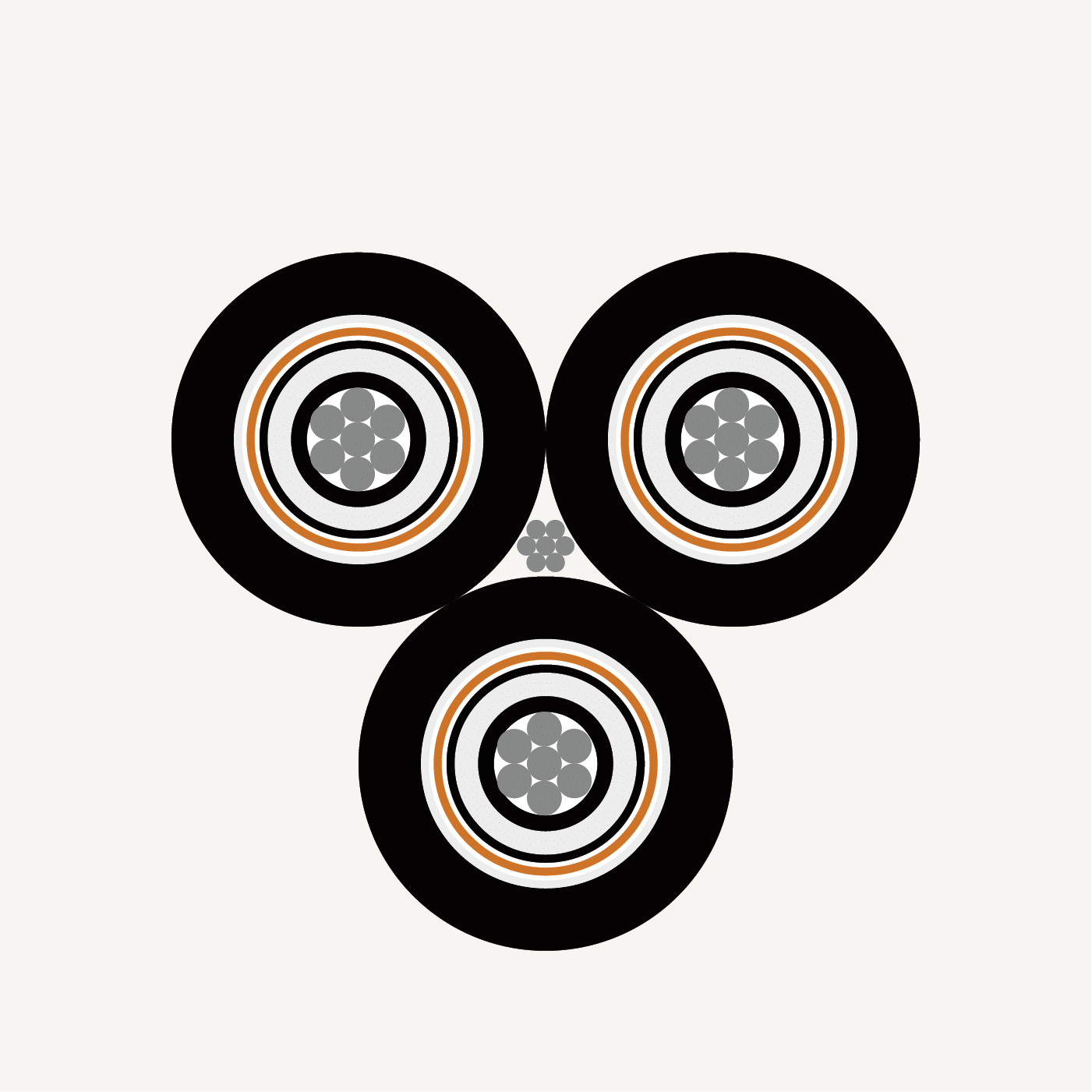

Conductor Material: Aluminium (AL.)
Armour Type: Unarmoured
Insulation Material: XLPE
Voltage Rating: 22 kV
Conductor: Aluminium, Class 2
Composition: XLPE/CWS/HDPE
Colours: Black
Operating Temp: 90°C
Durability: Copper wire screened and Galvanised steel catenary, UV resistant and abrasion resistant
Flexibility: Fixed
Aus Standards: Complies with AS/NZS 3599.1
Industries/Projects: Suitable for HV ABC applications where a copper wire screen is required.
