Disclaimer: Specifications and technical details are for indicative purposes only, subject to change.
CDS can source or manufacture custom cables even if not shown online.

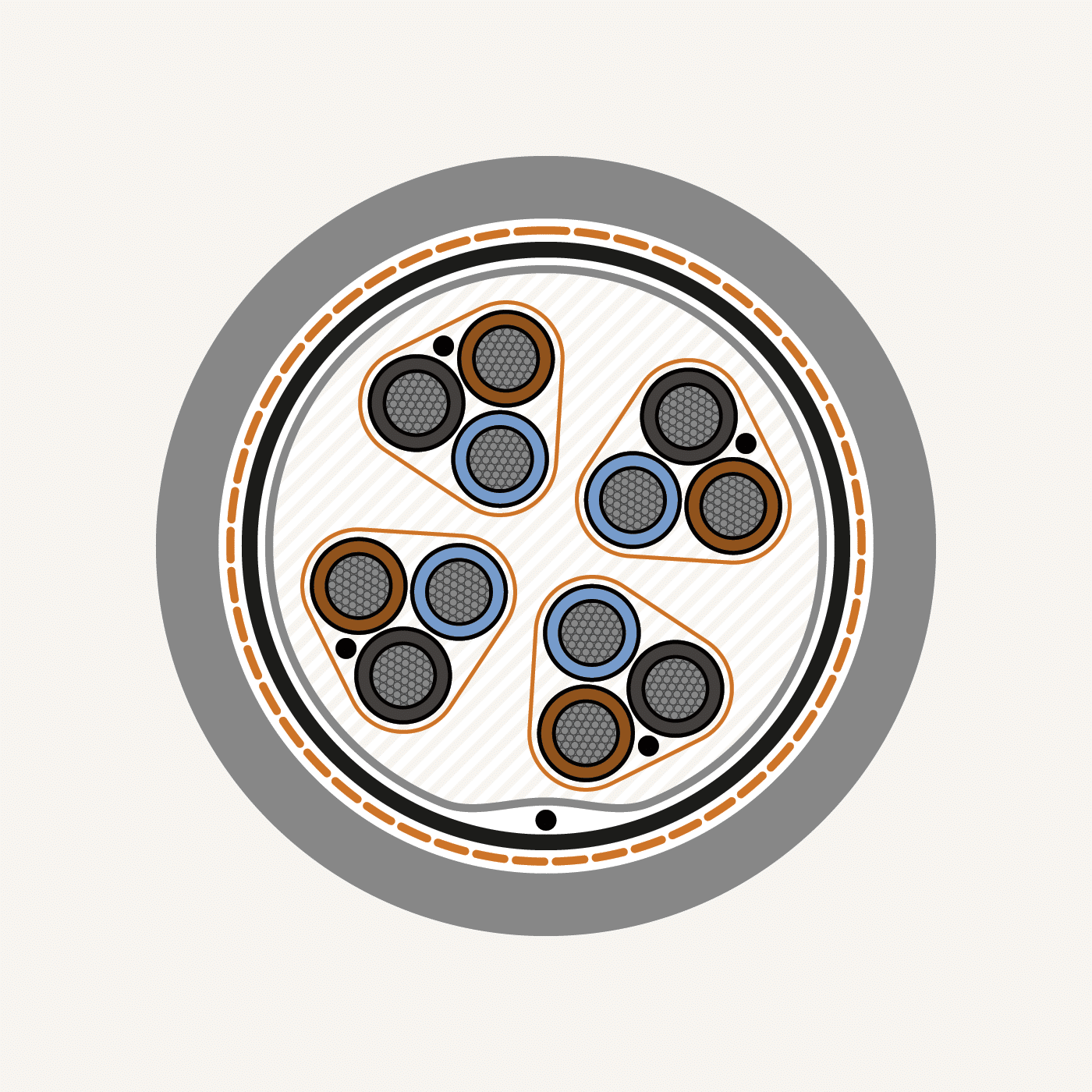

Screen Type: Individual & Overall Screened
Conductor Material: Tinned Copper (TCu.)
Armour Type: Armoured
Insulation Material: EPR
Voltage Rating: 250V
Conductor: Copper, Class 2 or 5(FX)
Composition: EPR/ALPS Tape/SHF2(Mud)
Colours: Various
Operating Temp: 90°C
Durability: Twisted pairs/triads with individual and overall screen of Al. or Cu. backed tape with tinned copper drain wire. Overall tinned copper wire braid with high coverage density for EMI and mechanical protection. Mud, Oil and Abrasion resistant, Flame retardent, Low Smoke Zero Halogen.
Flexibility: Moderate
Aus Standards: Complies with NEK 606 / IEC 60092/376
Industries/Projects: Suitable for intstrumentation, communication and monitoring & control cables for fixed installation on offshore topsides in Intrinsically Safe areas (Blue Sheath), and Non IS areas (Grey Sheath), with additional mud resistance.
