Screen Type: Individual Screened
Conductor Material: Bare Copper (Cu.)
Armour Type: Armoured
Insulation Material: XLPE
Voltage Rating: 250V
Conductor: Copper, Class 2
Composition: Mica Tape + XLPE + CWB
Colours: Orange
Operating Temp: 90°C

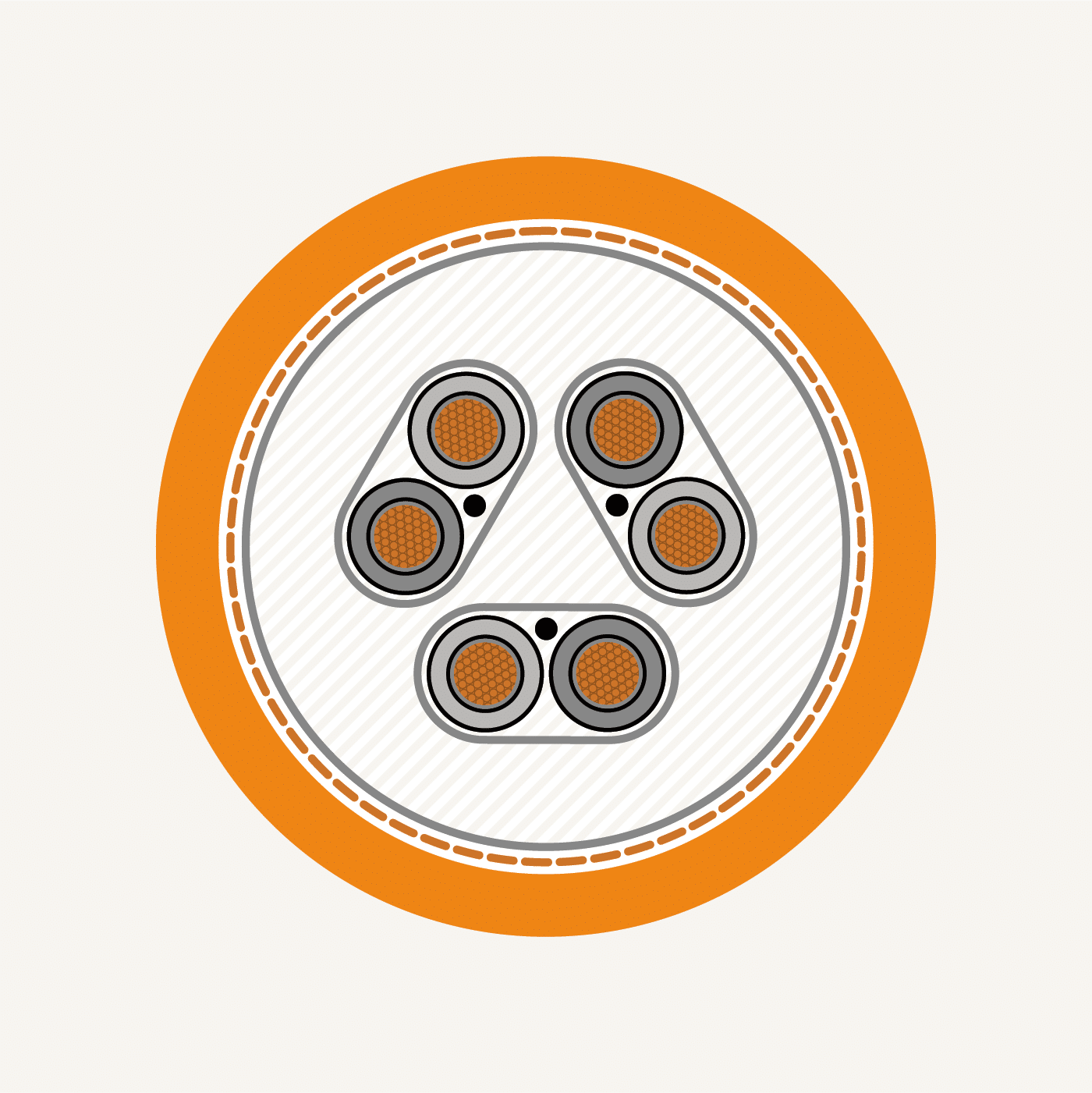

Durability: The BXOI (IC) cable is a marine-grade, fire-resistant instrumentation cable composed of high-conductivity copper conductors, mica glass and XLPE insulation for thermal and fire protection, and dual shielding with aluminium foil and copper braid for EMI resistance. It is wrapped in polyester tape and finished with a flame-retardant, low smoke halogen-free (LSHF) sheath, making it ideal for harsh environments requiring high safety and signal integrity.
Flexibility: Moderate
Aus Standards: Complies with IEC 60092-376/359 & IEC 60331
Industries/Projects: BXOI (IC) cables are used in marine, offshore, and industrial environments for instrumentation and control systems, offering reliable performance where fire resistance, low smoke emission, and EMI protection are critical.
